Planetary Dosing Chemical Agitator Mixing Tank Vat 100 Gallon Liquid Mixing Tank

Name: Planetary Dosing Chemical Agitator Mixing Tank Vat 100 Gallon Liquid Mixing Tank
Brand: FANBAO
Price: 1 USD

China Planetary Dosing Chemical Agitator Mixing Tank Vat 100 Gallon Liquid Mixing Tank wholesale

Brand Name : FANBAO

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 150sets per month

Delivery Time : 5-8 work days

Packaging Details : standard export wooden case

Core Components : Motor, Gear, Gearbox, Other, Engine

Range of Spindle Speed(r.p.m) : 1 - 1400 r.p.m

Mixer Type : planetary Mixer

Max. Loading Volume (L) : 500L

Weight (KG) : 40kg

Application : Liquid Processing, Chemicals Processing, Plastics Processing, Food Processing

After-sales Service Provided : After-sales Service Provided Online support, Video technical support

Product name : 500L PE Dosing Tank With Propeller Agitator Plastic Mixing Tank

Contact Now

500L PE Dosing Tank With Propeller Agitator Plastic Mixing Tank

Product Attributes

Core Components	Motor, Gear, Gearbox, Other, Engine
Range of Spindle Speed	1 - 1400 r.p.m
Mixer Type	Planetary Mixer
Max. Loading Volume	500L
Weight	40kg
Application	Liquid Processing, Chemicals Processing, Plastics Processing, Food Processing
After-sales Service	Online support, Video technical support

Product Description

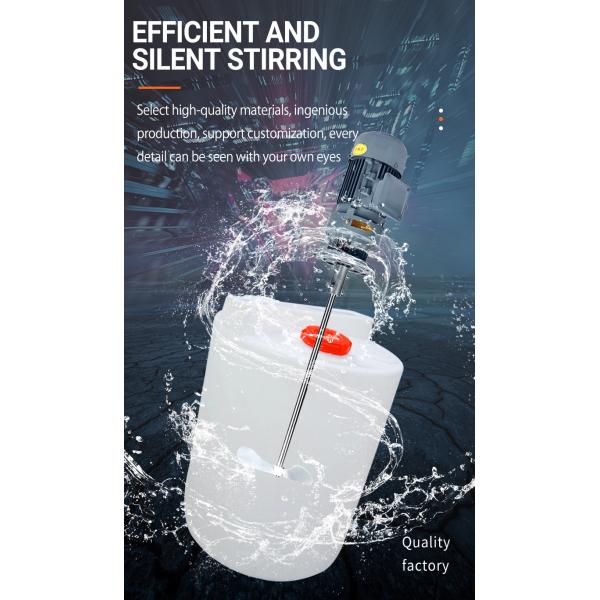

The 500L PE Dosing Tank with Propeller Agitator is a versatile plastic mixing tank designed for industrial applications. Featuring a raised section for easy installation of chemical dosing agitators, this tank is constructed from imported LLDPE raw materials using one-shot rotomolding for superior durability.

Key Features

Hygienic, lightweight, and sturdy construction
Excellent corrosion, shock, and impact resistance
Customizable shaft options available
Ideal for water treatment, environmental protection, electronics, chemical, food, and pharmaceutical industries

Technical Specifications

Product Number	Capacity	Diameter (mm)	Vertical Height (mm)	Total Height (mm)	Caliber (mm)	Wall Thickness (mm)	Suitable Mixer Power
Flat -100L	100L	460	730	780	150	4	0.37KW-380V/220V
Flat -200L	200L	560	860	910	150	4	0.55KW-380V/220V
Flat -300L	300L	710	800	940	200	5	0.55KW-380V/220V
Flat -500L	500L	840	910	1060	240	6	0.75KW-380V/220V
Flat -750L	750L	1040	900	1110	380	6	0.75KW-380V/220V
Flat -1000L	1000L	1040	1190	1360	380	6	1.1KW-380V/220V
Flat -1000Lshort	1000L	13000	830	1030	380	6	1.1KW-380V/220V
Flat-1200L	1200L	1220	1030	1200	380	7	1.1KW-380V/220V
Flat-1500L	1500L	1220	1280	1450	380	7	1.1KW-380V/220V
Flat-2000L	2000L	13000	1520	1700	380	7	1.5KW-380V/220V
Flat -2000Lshort	2000L	1550	1060	1250	500	7	1.5KW-380V/220V
Flat -3000L	3000L	1550	1600	1790	500	8	1.5KW-380V/220V
Flat -5000L	5000L 220V	1750	2080	2300	500	9	2.2KW-380V/220V
