Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm

Name: Foot Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm1500rpm
Brand: FANBAO
Price: 1 USD

China Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm wholesale

Brand Name : FANBAO

Place of Origin : chinaPort

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 150sets per month

Delivery Time : 5-8 work days

Packaging Details : standard export wooden case

Gearing Arrangement : Planetary motor

Mounting : Foot mounted, flange mounted

Output Speed : 0.64-350rmp

Weight (KG) : 10kg

Output Torque : 108100N.m

Input Speed : 750-1500rpm

Material : Steel or cast iron

Port : Shanghai, Ningbo

Contact Now

750rpm-1500rpm Cycloidal Reducer Planetary Reduction Gearbox

Cycloidal Reducer Specifications

Attribute	Value
Gearing Arrangement	Planetary motor
Output Torque	108100N.m
Cycloidal Reducer Input Speed	750-1500rpm
Output Speed	0.64-350rpm
Weight	10kg
Material	Steel or cast iron
Port	Shanghai, Ningbo
Mounting	Foot mounted, flange mounted

Cycloidal Reducer Overview

The cycloidal reducer is a high-performance transmission mechanism utilizing planetary transmission principles with cycloidal needle tooth meshing, compliant with JB/T2982 standards. Its robust design makes it ideal for demanding applications across multiple industries.

Cycloidal Reducer Key Features

Innovative planetary cycloid transmission system
Three-component structure: input, reduction, and output sections
Versatile mounting options (horizontal, vertical, dual-axis, direct-coupled)
High-quality steel or cast iron construction
Precision-engineered for smooth operation and durability

Technical Specifications

Model	Power (KW)	Shaft Diameter (mm)	Center Height (mm)	Mounting Pitch (mm)	Key Size (mm)	Shaft Length (mm)	Shaft to Hole (mm)
BWD-B0-0.75	0.75	30	100	90*150	8	35	93
BWD-B1-1.1	1.1	35	120	110*240	10	56	125
BWD-B1-1.5	1.5	35	120	110*240	10	56	125
BWD-B2-2.2	2.2	45	140	150*280	14	68	144
BWD-B2-3.0	3.0	45	140	150*280	14	68	144
BWD-B3-5.5	5.5	55	160	200*340	16	80	149
BWD-B3-7.5	7.5	55	160	200*340	16	80	149

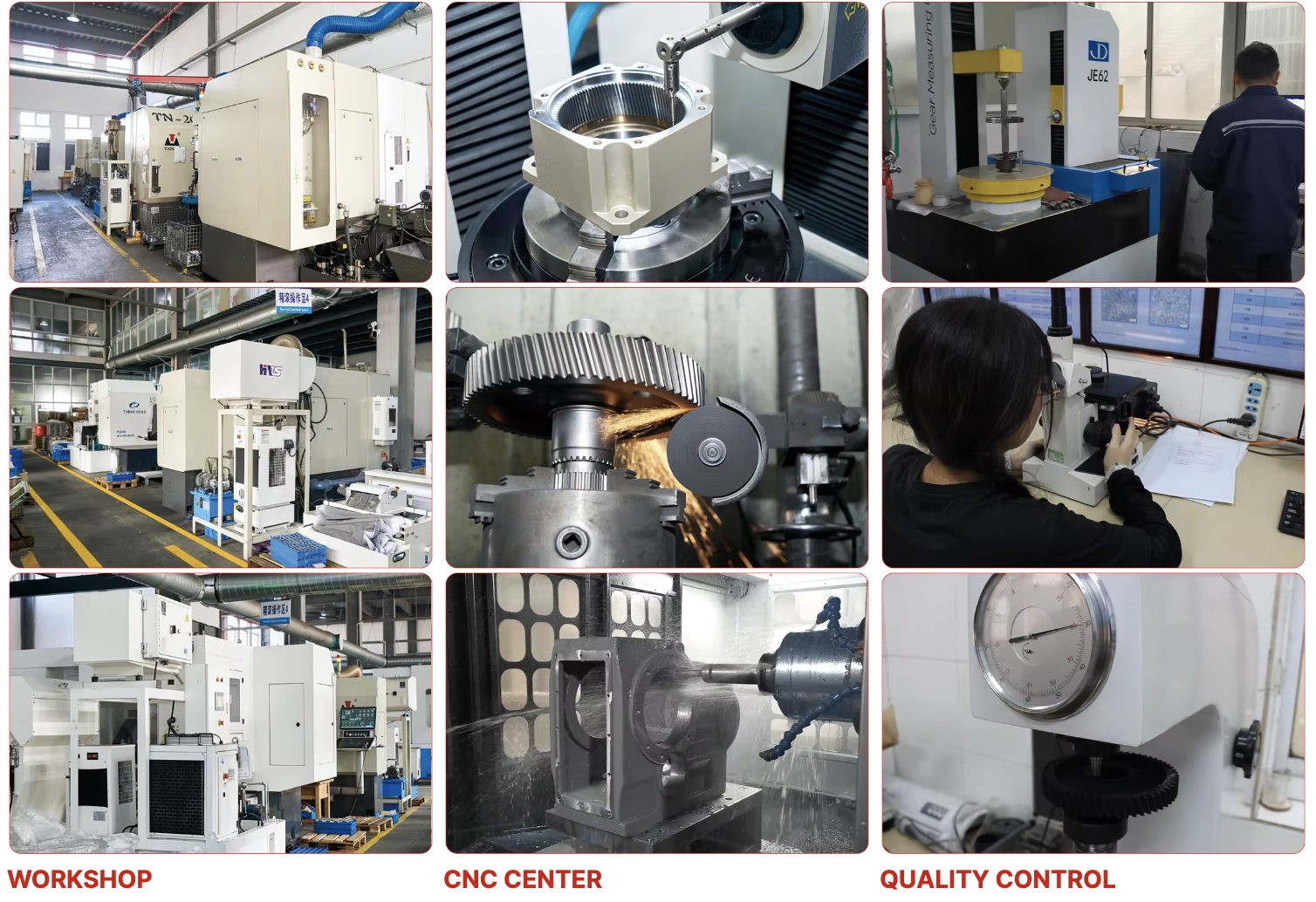

Construction Details

The frame is manufactured from high-quality materials with exceptional tensile strength. The casting process includes double-shot treatment to ensure clean inner cavities and perfectly flat surfaces for optimal performance.

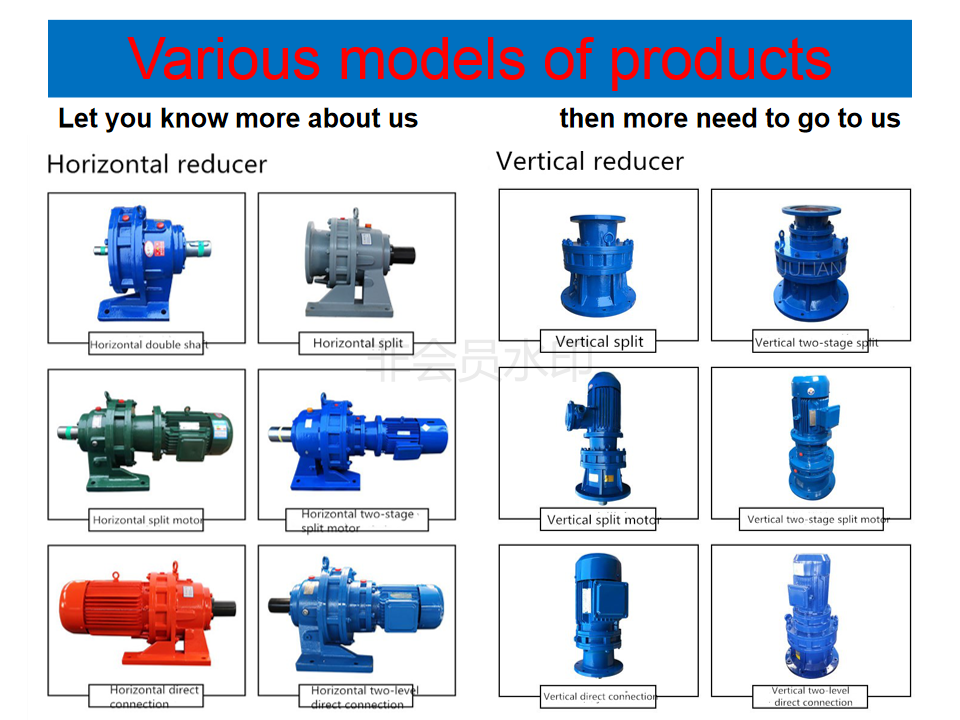

Cycloidal Reducer Images

Foot / Flange Mounted 10kg Cycloidal Reducer Planetary Reduction Gearbox 750rpm-1500rpm

Industrial Cycloidal Reducer Applications

This cycloidal reducer is widely used in diverse industries including:

Textile printing and dyeing
Food processing and packaging
Mining and metallurgy
Petrochemical processing
Construction machinery
Material handling and transportation
Power generation equipment
Pharmaceutical manufacturing
